Afinia EinScan Rigil Wireless Handheld 3D Scanner

  • Vendor
    Afinia
    Sale price
    $4,999.00
    Regular price
    $4,999.00
    Unit price
    per
    Shipping calculated at checkout.
    Why Shop With Us?

    ☑ We will MATCH OR BEAT any Competitor's Price

    ☑ Friendly & Responsive Award Winning Customer Service Team

    ☑ SSL Secure Payment Gateway for Safe, Easy Shopping

    ☑ We Accept Purchase Orders from Schools, Businesses, and Government


    Handling Time: Product Ships in 1-3 Business Days

    Shipping Time: Please Allow 2-6 Business Days for Delivery

    Shipping: Free Shipping on orders over $199 (some exclusions)

    Afinia EinScan Rigil Wireless Handheld 3D Scanner

    (Blue Laser and Infrared), Markerless, Full Color
    with Touchscreen display with rechargeable batteries



    EinScan Rigil is the world’s first Tri-Mode 3D scanner  with built-in computing, wireless solution and hybrid light technology. Rigil offers a fully integrated 3D scanning wireless workflow with three working modes that effectively eliminates the traditional compromise  between computing power and flexibility.  It provides high quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm. Its three types of light sources — 19 crossed blue laser lines, 7 parallel blue laser lines, and infrared VCSEL — which paired with two separate groups of tailored cameras to ensure versatile performance and peak efficiency for objects of wide-range of sizes and surface types

    Features

    Wireless and Standalone
    Complete on-device scan-to-mesh
    Marker-free laser scans with texture
    Powerful embedded computing by NVIDIA
    Limited Warranty: 1-Year, Parts & Labor

    ●Hybrid light resources in your hand

    ●High Volumetric accuracy 0.04+0.06 mm/m;

    ●Geometric Resolution up to 0.05 mm

    ●Superior adaptability to scan objects with dark or reflective metal  surface without spray

    ●Working efficiently in sunlight outdoors.

    ● Marker-Free Laser Scanning

    ● 5MP Full Color Texture Scanning

    ●All-In-One Powerful Hardware

    Specifications

    EinScan Rigil
    Work Mode Wireless Standalone
    For extra computing resource: PC-Wireless / PC-Wired
    Scan Mode Laser HD IR Rapid
    Light Source 19 crossed laser lines 7 blue laser parallel lines IR VCSEL
    Resolution 0.05 ~ 10 mm 0.2 ~ 10 mm
    Scanning Speed 4,400,000 points/s 940,000 points/s 1,600,000 points/s
    Working Distance 170 ~ 550 mm 160 ~ 1500 mm
    Alignment Mode Global Markers / Markers / Features / Hybrid Global Markers / Markers / Features / Texture / Hybrid
    Volumetric Accuracy Up to 0.04 + 0.06 mm/m Up to 0.1 +0.3 mm/m
    Camera Resolution 3D: 2.3MP*2  1.3MP*2; Texture: 5MP
    Output Formats STL, OBJ, PLY, 3MF, ASC
    Laser Class Class II /
    Hardware CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM;
    32GB DDR5 RAM; 6.4" 2K AMOLED Touch Screen
    Operation Conditions Temperature -10°C ~ 40°C
    Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
    Recommended
    Configuration for PC
    Win10/11, 64 bit; Graphics card: NVIDIA GTX106;
    Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB
    Interface & Power Source USB Type-C
    Battery: 6000mA*2; Support 60W-PD3.0 Charger
    Dimension (H*D*W) 233x180x72.8 mm
    Net Weight 870g (batteries included)

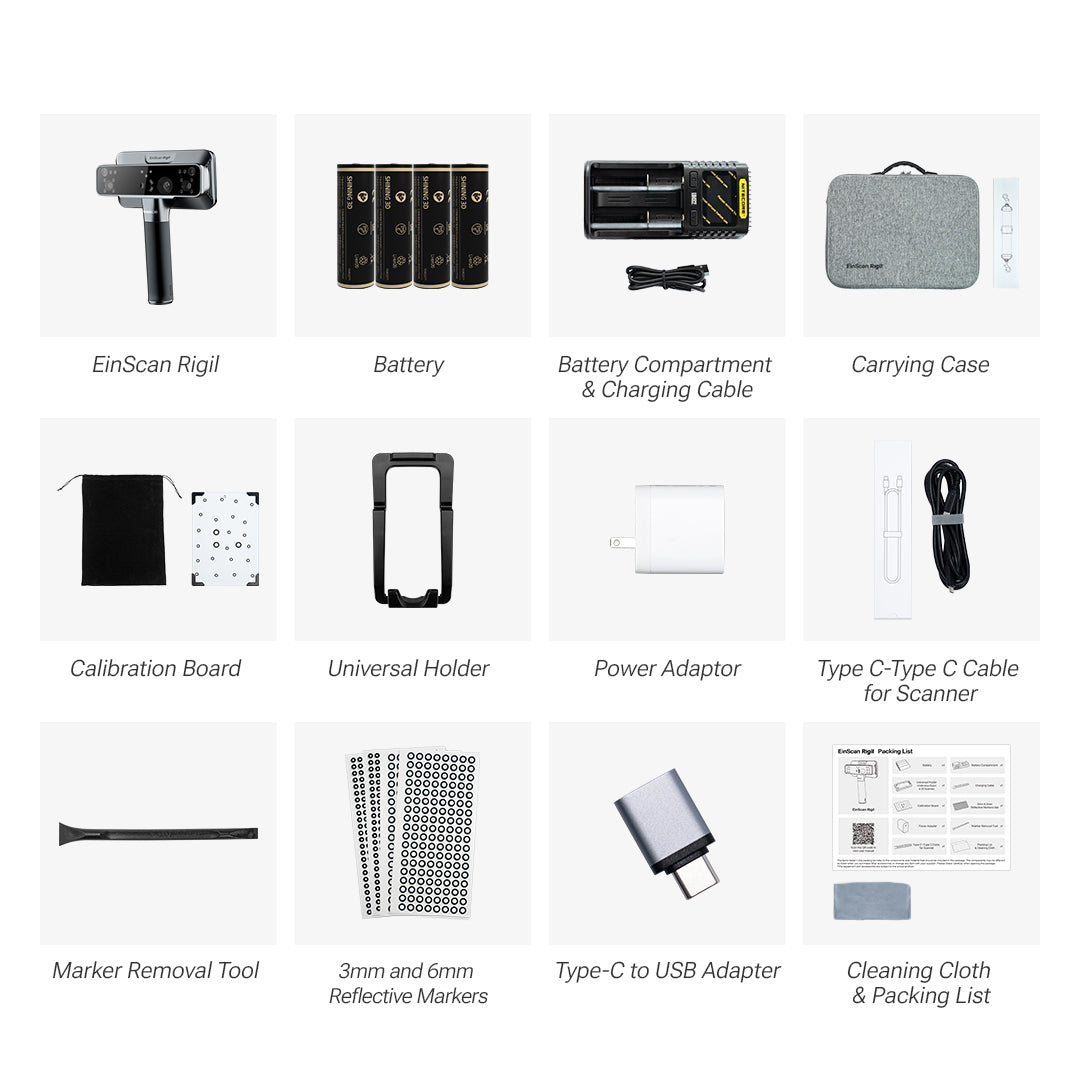

    Packing List

    Resources

    Einscan Rigil Brochure
