Basic AI Kit for Dobot Magician

Dobot Magician Basic AI Kit for Hands-On AI and Robotics Education

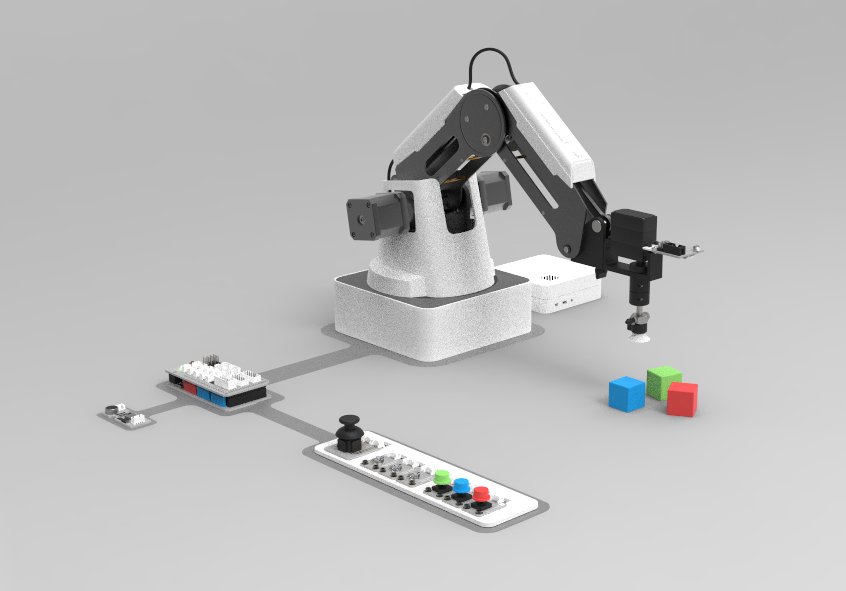

Turn the Dobot Magician robotic arm into an interactive learning platform for artificial intelligence, programming, electronics and human-machine interaction. The Dobot Magician Basic AI Kit combines an Arduino Mega 2560-compatible control board with vision, voice, joystick, button and LED modules, giving students a practical way to move from code to real-world robotic behavior.

Students can program controls, recognize visual inputs, respond to voice commands and build a remote controller for the Dobot Magician. Instead of learning AI concepts only in theory, they can see their code trigger lights, inputs and robotic movement in real time.

Why Choose This AI Kit?

• Hands-on AI learning: Explore visual recognition, English voice recognition and human-machine interaction.
• Programming and electronics: Learn coding, circuits, sensors and robotic control through practical projects.
• Open-source flexibility: Compatible with Mixly and Arduino-related peripheral sensors for secondary development.
• Built for creative projects: Program buttons, LEDs and a joystick, or build a Dobot remote controller.
• Structured learning: Courses are provided to help students learn robotic-arm programming and foundational AI concepts.

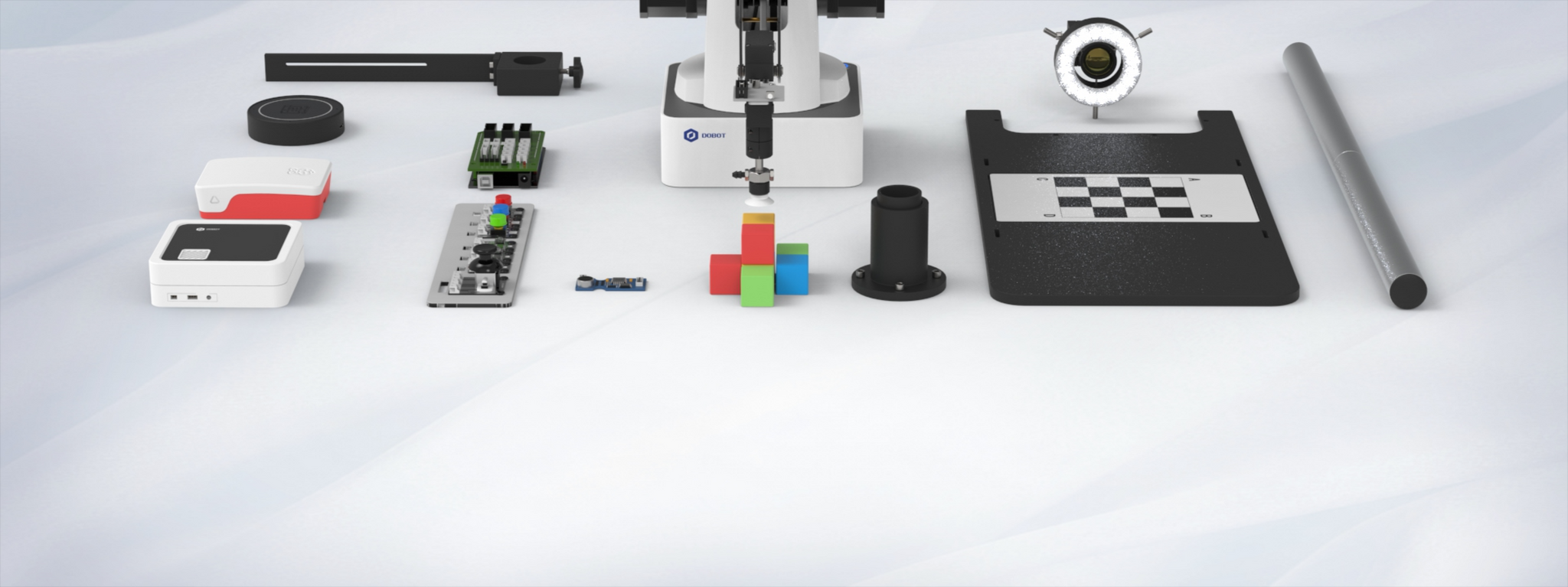

Core Components and Capabilities

• DfRduino Mega2560 V3 control board, compatible with Arduino Mega 2560
• Pixy CMUcam5 vision module with an OV9715 image sensor
• English voice module with 22 identification items and a built-in omnidirectional microphone
• Two-axis analog joystick with Z-axis button output
• Red, green and blue digital button modules
• Red, green and blue LED modules

Who Is the Dobot Magician Basic AI Kit For?

This entry-level AI and robotics education kit is designed for students, educators, robotics programs and makers who want to teach or explore artificial intelligence through physical interaction. It is especially useful for classroom demonstrations, programming exercises and project-based STEM learning with a Dobot Magician robotic arm.

Technical Specifications

DfRduino Mega2560 V3

• Microcontroller: ATmega2560
• Operating voltage: 5V
• Recommended input voltage: 7V–12V
• Input voltage range: 6V–20V
• Digital I/O pins: 54, including 15 PWM outputs
• Analog input pins: 16
• Flash memory: 256 KB, including 4 KB used by the bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock speed: 16 MHz

Pixy CMUcam5 Vision Module

• Processor: NXP LPC4330, 204 MHz dual-core
• Image sensor: Omnivision OV9715, 1/4 inch, 1280 × 800
• Field of view: 75° horizontal and 47° vertical
• Lens: Standard M12
• Power input: USB 5V or unregulated 6V–10V
• Outputs: UART serial, SPI, I2C, USB, digital and analog
• Size: 2.1 × 1.75 × 1.4 inches

Voice, Joystick, Button and LED Modules

• Voice module voltage: 3.3V–5V
• Voice module working temperature: 0–85°C
• Joystick power: 3.3V–5V
• Joystick output: Two analog axes plus one Z-axis button
• Digital button colors: Red, green and blue
• LED colors: Red, green and blue

Frequently Asked Questions

What can students learn with this kit?

Students can practice AI fundamentals, robotic-arm control, Arduino programming, circuit design, sensor input, visual recognition, voice recognition and human-machine interaction.

Is this kit compatible with Arduino?

Yes. The included DfRduino Mega2560 V3 is compatible with Arduino Mega 2560, and the platform supports Arduino-related peripheral sensors.

Does the kit work with Mixly?

Yes. The open-source electronic platform is compatible with Mixly.

Which robot is this kit made for?

This Basic AI Kit is designed for use with the Dobot Magician robotic arm.
