Raise3D E2CF Carbon Fiber Professional Desktop 3D Printer

  • Vendor
    Raise3D
    Sale price
    $4,499.00
    Regular price
    $4,499.00
    Unit price
    per
    Shipping calculated at checkout.

    Call Us Now to Lock in the Lowest Prices Online: (833) 767-4275.
    Free Shipping for orders over $199. No Sales Tax (exclusions may apply).


    Why Shop With Us?

    ☑ We will MATCH OR BEAT any Competitor's Price. Simply Contact Us.

    ☑ Friendly & Responsive Award Winning Customer Service Team.

    ☑ SSL Secure Payment Gateway & Hassle Free Returns Makes Shopping Easy and Stress-Free.


    Estimated Handling Time: Product Ships in 1-2 Business Days

    Shipping Time: Please Allow 2-6 Business Days for Delivery

    Shipping & Returns: Free Shipping on orders over $199

    Raise3D E2CF Carbon Fiber Professional Desktop 3D Printer



      Carbon Fiber 3D Printing Made Simple

      E2CF is a desktop 3D printer developed by Raise3D for carbon fiber-reinforced filaments and other composite materials.

      Carbon fiber filament has low density, high strength, and it is resistant to corrosion, static electricity and high temperature.It has potential for a wide range of applications within industries that need considerable strength-to-weight ratio in their solutions, such as the aviation industry and the automotive field. The E2CF is durable, user-friendly and stable while in operation and prints accurately.





      Features

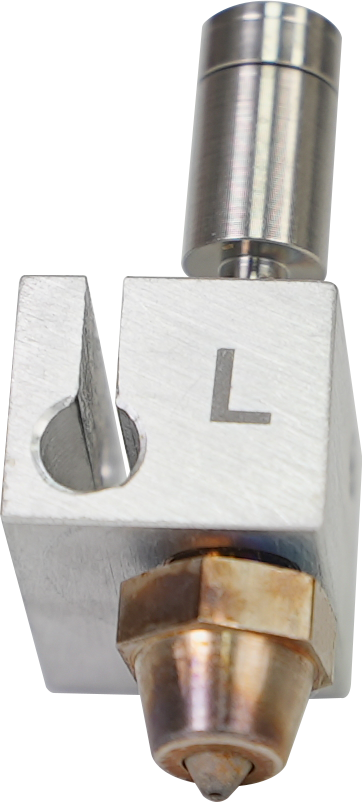

      Nozzles with High Durability

      The new silicon carbide nozzles have excellent wear resistance and thermal conductivity, which will effectively lessen the abrasion the carbon fiber composite filament subjects the nozzle to when printing, making the nozzle more durable.

      *Nozzles made of other materials suitable for printing carbon fiber filaments will be launched in the future.


      Dual Direct Drive Extrusion System

      The gears are made of high-hardness steel and have been heat-treated for better wear resistance.

      With a custom gear tooth profile, filament is firmly held in place to ensure that it does not slip when extruding. The force of the system is enhanced to ensure the stability of printing.



      Compatible with a Variety of Carbon Fiber Composite Filaments

      The E2CF is compatible with the Raise3D Industrial PA12 CF Filament and the high-performance carbon fiber filaments certified by the Raise3D Open Filament Program, such as PA CF/PET CF/PPS CF (printing Temp. between 280-300 °C) from BASF and LEHVOSS.

      The Raise3D Industrial PA12 CF Filament is reinforced with short carbon fibers, and exhibits excellent rigidity and strength, heat resistance, low warpage, and low water absorption. Meanwhile, this material has an outstanding strength-to-weight ratio, and will obtain enhanced mechanical property and dimensional stability after annealing, which makes it suitable to replace metal in the manufacturing of certain lightweight components.




        Raise3D Industrial PA12 CF Support Filament

        Raise3D Industrial PA12 CF Support Filament is a break-away support material specially developed for carbon fiber-reinforced composite filaments. During the 3D printing process, it creates a stable support structure, providing proper adhesion to printed surfaces and counteracting any tendency to warp. As such, it significantly improves the surface quality of the overhangs and hollows of the printed items. After a print is finished, the support structure can be easily removed or broken away from the printed parts. This support material exhibits a broad compatibility with many Raise3D OFP (Open Filament Program) certified high-performance carbon fiber-reinforced composite filaments, and is more cost-effective when compared with water-soluble support material.



        Sealed Dry Box

        The built-in suspension trays are used to place the filament and allow material to be pulled more smoothly. When closed, they can effectively prevent dust and moisture from affecting the material, for a period of up to 30 days*.

        *From Raise3D test data.



        ideaMaker Slicing Profiles

        The E2CF has slicing profiles that have been repeatedly tested and verified by our engineers in ideaMaker. There is no need to adjust the parameters before printing. Enjoy easy and high-quality printing.

        Like other Raise3D products, E2CF can carry out mass production and intelligent management with the ideaMaker as the core software solution.



        Applications

        Carbon fiber composite materials have many applications, including functional prototypes, aerospace, automotive, medical, sports equipment, civil engineering, electronics, and other fields. Carbon fiber composite material has the potential for a variety of uses, such as fixtures in a mechanical workshop, prosthetics, and customized bicycle frames.



        What features make the E2CF a good desktop 3D printer?



        What is IDEX? Why is IDEX important?

        The E2CF is an IDEX 3D printer. IDEX stands for independent dual extruders meaning the extruders can operate independently of one another along the same axis during printing to perform more advanced functions.

        With IDEX, one extruder can remain motionless and off to the side while the second extruder prints the model, minimizing the risk of the nozzle on the motionless extruder interfering with the print job during dual or single extrusion printing.



        What are Mirror Mode and Duplication Mode? Why are these functions important?

        IDEX can perform two specialized functions, Mirror Mode and Duplication Mode.

        Mirror Mode prints a model and an inverse of that same model at the same time. It is convenient because it saves the effort of creating an additional design file for the inverse model, and it saves the extra time usually spent printing the inverse model separately.

        Duplication Mode is synchronized printing, meaning it uses both extruders to print a model and an exact copy of that model at the same time. It can double production capability within the same timeframe.


        What are other convenient features of the E2CF? And why are they important?

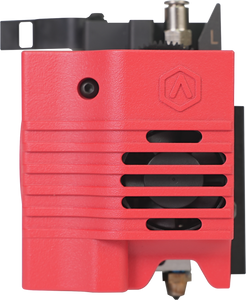

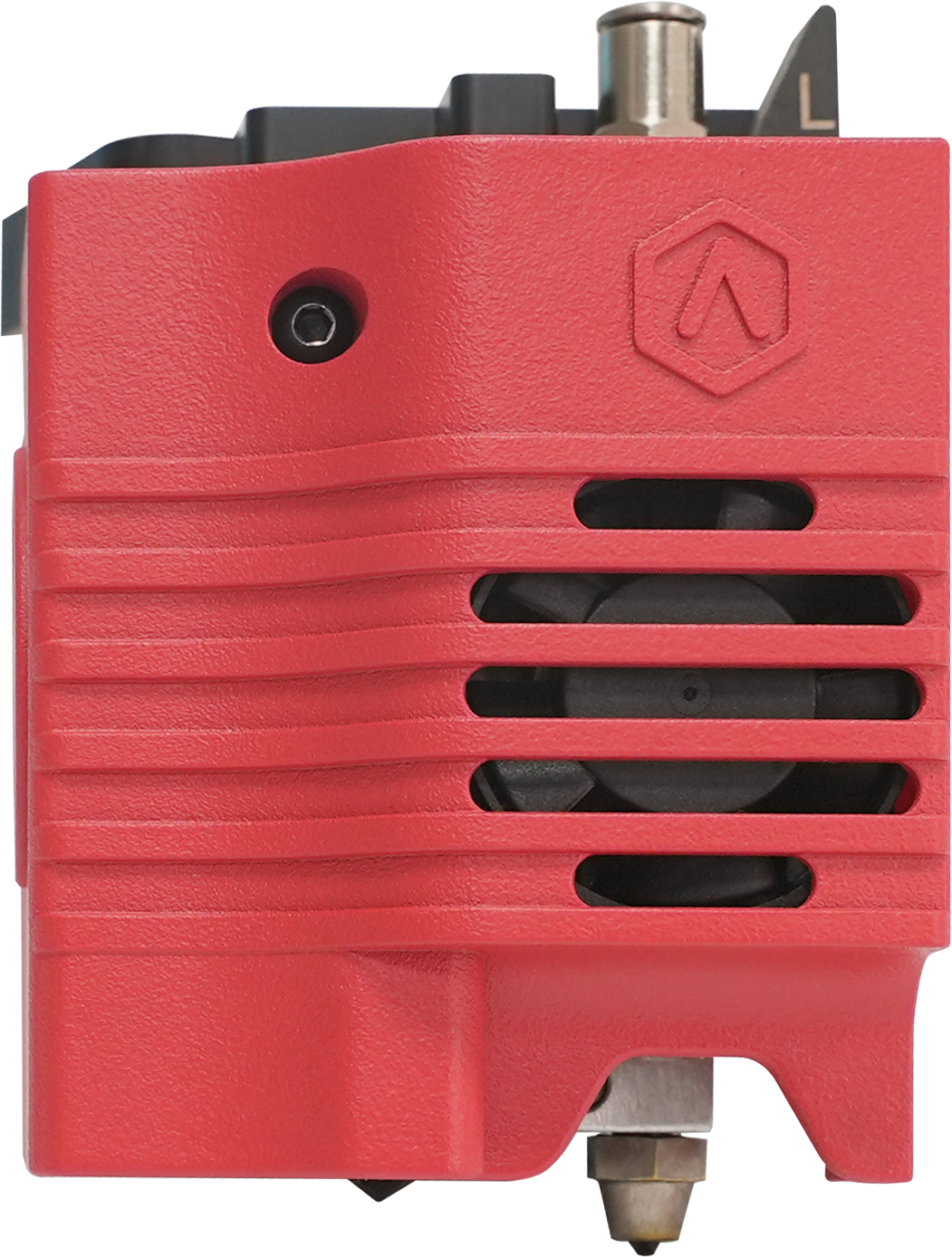

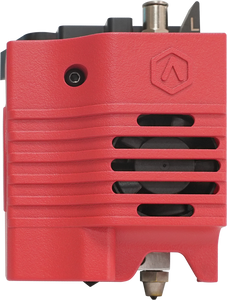

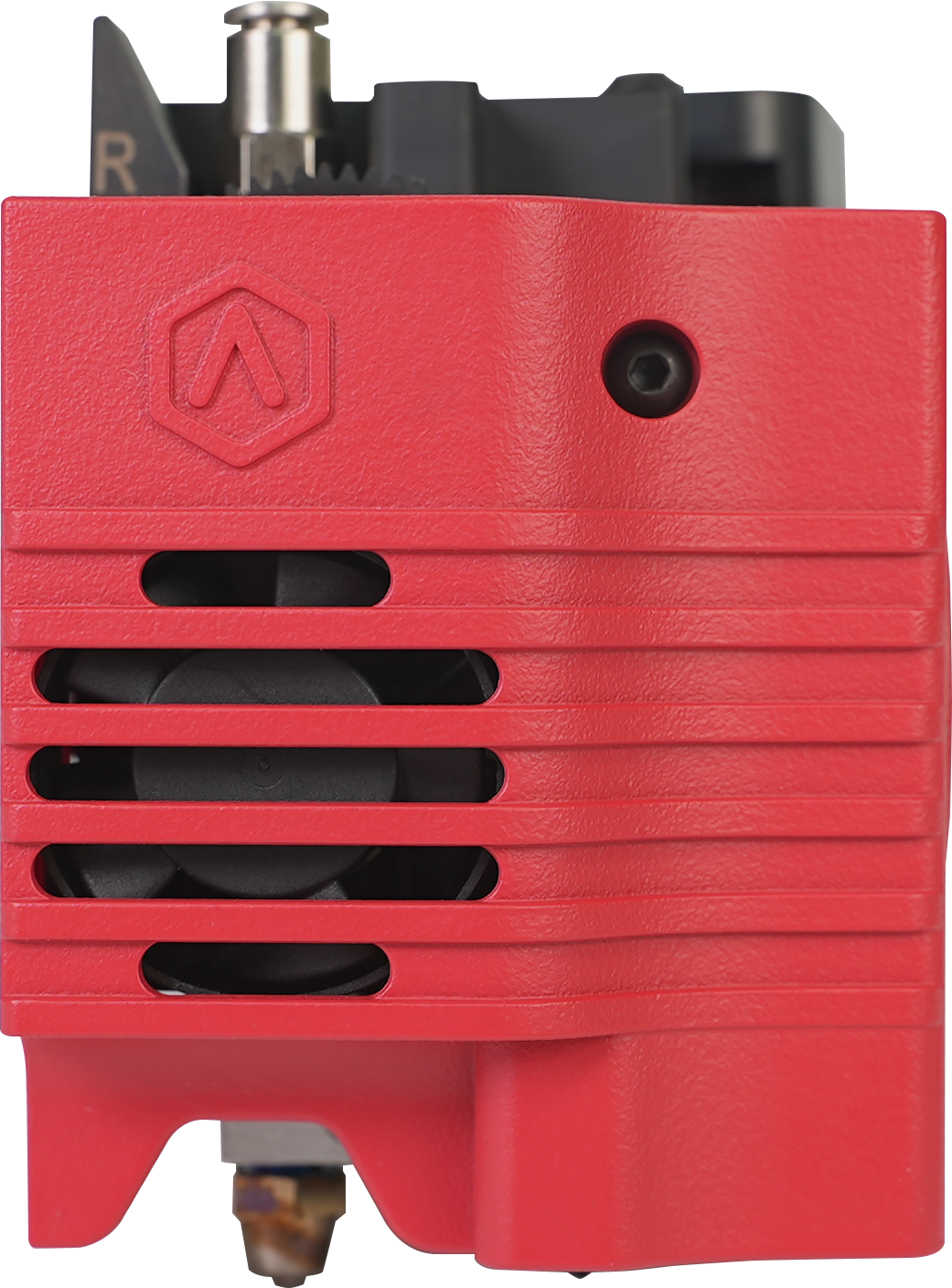

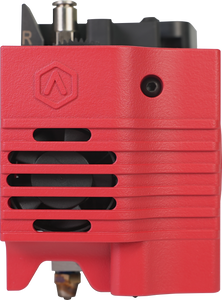

        Easy Swap Print Heads are a convenient feature of the E2CF. These print heads are easy to remove, making it easy to swap out a print head for another print head. There are a variety of reasons why swapping print heads is necessary, such as using a different print head with a different nozzle.

        Any spare Easy Swap Print Heads can easily be prepared with hardened nozzles, and nozzles at different sizes, such as 0.4, 0.6, and 0.8 nozzles to swap in a few steps and get back to printing.



        High-quality & User-friendly


         Professional 3D printers, like the E2CF, are quality, user-friendly printers, designed with features to ensure the best possible printing results. For example, the E2CF has a flexible build plate, which allows 3D printed parts to be easily removed, while minimizing potential damage to the part during removal. It is features like the flexible build plate that help make the E2CF a user-friendly and industrial beginner 3D printer for those who wish to gain experience in the area of professional 3D printing.



        Auto Bed Leveling

        Bed leveling is the process of confirming that the printing platform is as level as possible. The E2CF has this leveling procedure as an automated function. Auto bed leveling will maintain the distance between the print nozzles and the bed, to create a uniform build area. This improves bed adhesion and allows the extruder to adjust to even the most minor of surface contour changes for better final print quality.



        Camera

        The E2CF uses a camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives peace of mind.



        Safety Features

        Power Loss Recovery

        Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process. However, the E2CF has a filament run-out sensor on its extruders to alert when the filament is about to run out and saves the print job. It also has a power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.



        Automatic Detection

        Another safety feature of the E2CF is that it can automatically detect when a door is opened and will immediately pause the print.

        Improved calibration accuracy

        A new auxiliary process was developed specifically for fiber-reinforced materials, to improve nozzle height calibration accuracy, support adhesion, and first layer print performance.

        The full metal frame acts as a reliable motion system for smooth movement and precise positioning for higher quality printing

        High-quality 3D printing comes from high-quality 3D printers. The E2CF desktop 3D printer uses a full metal frame to create a specific motion system that allows the machine to smoothly glide as it prints. This motion system works with precise positioning to ensure 3D print jobs are as accurate as possible.

        The updated HEPA air filtration removes toxic particles released during the 3D printing process.

        The E2CF desktop 3D printer has HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air filter works effectively in classrooms, offices, and large or small workspaces. The E2CF’s HEPA air filtration operates silently, designed to work quietly in the background of any workspace.

        7-inch touch screen for efficiency and monitor the printing process with 3D printing software

        This professional 3D printer also features a 7-inch touchscreen, enabling users to interact with the printer directly. The touchscreen also provides on-screen assistance and visual model selections to simplify operating and monitoring the 3D printer and 3D printing process. Finally, as with all Raise3D 3D printers, the E2CF is compatible with ideaMaker, a 3D slicing program, and RaiseCloud, a cloud-based 3D printing management platform.



        Raise3D Ecosystem

        Pair ideaMaker and RaiseCloud with any of our 3D printers to create a Raise3D ecosystem for the best efficiency when 3D printing.

        ideaMaker

        ideaMaker is a free 3D slicing software from Raise3D, compatible with Raise3D printers and third-party printers.



        RaiseCloud

        RaiseCloud is a cloud-based 3D printing management platform capable of remotely monitoring the printing process and organizing print jobs for more efficient 3D printing.



        ideaMaker Library

        ideaMaker Library provides users with slicing profiles for various filaments, including Raise3D filaments and OFP certified filaments, simplifying the settings of printing parameters for different filaments.



          Specs


          GENERAL

          Build Volume (W×D×H)

          Single Extruder Print: 13×9.4×9.4 inch / 330×240×240 mm
          Dual Extruder Print: 11.6×9.4×9.4 inch / 295×240×240 mm

          Machine Size (W×D×H)

          23.9×23.5×18.3 inch / 607×596×465 mm

          Print Technology

          FFF

          Print Head System

          IDEX Independent Dual Extruders

          Filament Diameter

          1.75 mm

          XYZ Step Size

          0.78125, 0.78125, 0.078125 micron

          Print Head Travel Speed

          30–150 mm/s

          Build Plate

          Flexible Steel Plate with Buildtak

          Max Build Plate Temperature

          110 ºC

          Heated Bed Material

          Silicone

          Build Plate Leveling

          Mesh-leveling with Flatness Detection

          Filament Run-out Sensor

          Available

          Supported Materials

          PA12 CF, PA12 CF Support, OFP Certified Third-Party Filaments

          Layer Height

          0.1 – 0.25mm

          Nozzle Diameter

          0.4 mm (Default), 0.6/ 0.8 mm (Available)

          Hot End

          V4P

          Max Nozzle Temperature

          300 ºC

          Connectivity

          Wi-Fi, LAN, USB port, Live camera

          Noise Emission (Acoustic)

          <50 dB(A) when building

          Operating Ambient Temperature

          15-30 ºC, 10-90% RH non-condensing

          Storage Temperature

          -25 to +55℃, 10-90% RH non-condensing

          Filter

          HEPA filter with activated charcoal

          Net Weight

          32.4 kg

          Gross Weight (Carton Only)

          36.7 kg

          Gross Weight (Carton with Pallet)

          45.4 kg



          ELECTRICAL

          Power Supply Input

          100-240 V AC, 50/60Hz 230 V @ 2A

          Power Supply Output

          24 V DC, 350 W



          SOFTWARE

          Slicing Software

          ideaMaker

          Supported File Types

          STL/ OBJ/ 3MF/ OLTP

          Supported OS

          WINDOWS/ macOS/ Linux

          Machine Code Type

          GCODE



          PRINTER CONTROLLER

          User Interface

          7-inch Touch Screen

          Network

          Wi-Fi, Ethernet

          Power Loss Recovery

          Available

          Screen Resolution

          1024×600

          Motion Controller

          Atmel ARM Cortex-M4 120MHz FPU

          Logic Controller

          NXP ARM Cortex-A9 Quad 1 GHz

          Memory

          1 GB

          Onboard Flash

          8 GB

          OS

          Embedded Linux

          Ports

          USB 2.0×2, Ethernet×1
